complexType ChemicalFormulaeType

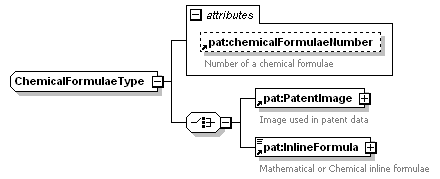

diagram
version	1.0
namespace	https://www.wipo.int/standards/XMLSchema/Patent/1
children	pat:PatentImage pat:InlineFormula
used by	element pat:ChemicalFormulae
attributes	Name Type Use Default Fixed annotation chemicalFormulaeNumber xsd:string
source	<xsd:complexType name="ChemicalFormulaeType"> <xsd:choice> <xsd:element ref="pat:PatentImage"> </xsd:element> <xsd:element ref="pat:InlineFormula"> </xsd:element> </xsd:choice> <xsd:attribute ref="pat:chemicalFormulaeNumber"/> </xsd:complexType>
