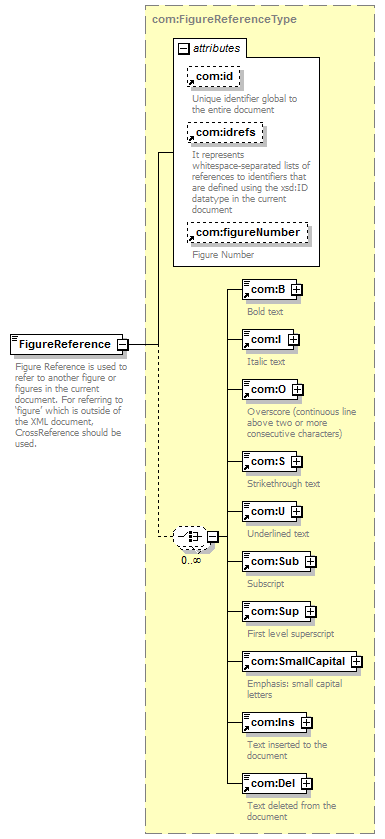

diagram |
![](Index_p146.png) |
version |
V2_0 |
namespace |
https://www.wipo.int/standards/XMLSchema/ST96/Common |
type |
com:FigureReferenceType |
properties |
|
children |
com:B com:I com:O com:S com:U com:Sub com:Sup com:SmallCapital com:Ins com:Del |
used by |
|
attributes |
Name |
|
Type |
|
Use |
|
Default |
|
Fixed |
|
annotation |
com:id |
|
xsd:ID |
|
|
|
|
|
|
|
documentation Unique identifier global to the entire document |
com:idrefs |
|
xsd:IDREFS |
|
|
|
|
|
|
|
documentation It represents whitespace-separated lists of references to identifiers that are defined using the xsd:ID datatype in the current document |
com:figureNumber |
|
xsd:string |
|
|
|
|
|
|
|
documentation Figure Number |
|
annotation |
documentation |
Figure Reference is used to refer to another figure or figures in the current document. For referring to ‘figure’ which is outside of the XML document, CrossReference should be used. |
|
source |
<xsd:element name="FigureReference" type="com:FigureReferenceType"> <xsd:annotation>
|
<xsd:documentation> Figure Reference is used to refer to another figure or figures in the current document. For referring to ‘figure’ which is outside of the XML document, CrossReference should be used. </xsd:documentation> |
</xsd:annotation> </xsd:element> |
