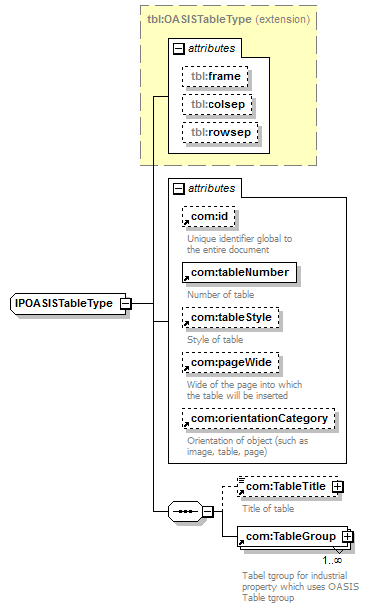

diagram |
![](Index_p493.png) |
version |
V2_0 |
namespace |
https://www.wipo.int/standards/XMLSchema/ST96/Common |
type |
extension of tbl:OASISTableType |
properties |
|
children |
com:TableTitle com:TableGroup |
used by |
|
attributes |
Name |
|
Type |
|
Use |
|
Default |
|
Fixed |
|
annotation |
tbl:frame |
|
xsd:token |
|
|
|
|
|
|
|
|
tbl:colsep |
|
xsd:boolean |
|
|
|
|
|
|
|
|
tbl:rowsep |
|
xsd:boolean |
|
|
|
|
|
|
|
|
com:id |
|
xsd:ID |
|
|
|
|
|
|
|
documentation Unique identifier global to the entire document |
com:tableNumber |
|
xsd:string |
|
required |
|
|
|
|
|
documentation Number of table |
com:tableStyle |
|
xsd:token |
|
|
|
|
|
|
|
documentation Style of table |
com:pageWide |
|
xsd:decimal |
|
|
|
|
|
|
|
documentation Wide of the page into which the table will be inserted |
com:orientationCategory |
|
com:OrientationCategoryType |
|
|
|
|
|
|
|
documentation Orientation of object (such as image, table, page) |
|
source |
<xsd:complexType name="IPOASISTableType"> <xsd:complexContent>
|
<xsd:extension base="tbl:OASISTableType"> <xsd:sequence>
|
<xsd:element ref="com:TableTitle" minOccurs="0"> </xsd:element> |
|
<xsd:element ref="com:TableGroup" maxOccurs="unbounded"> </xsd:element> |
</xsd:sequence> <xsd:attribute ref="com:id"/> <xsd:attribute ref="com:tableNumber" use="required"/> <xsd:attribute ref="com:tableStyle"/> <xsd:attribute ref="com:pageWide"/> <xsd:attribute ref="com:orientationCategory"/> </xsd:extension> |
</xsd:complexContent> </xsd:complexType> |
