complexType  DesignTransactionBodyType

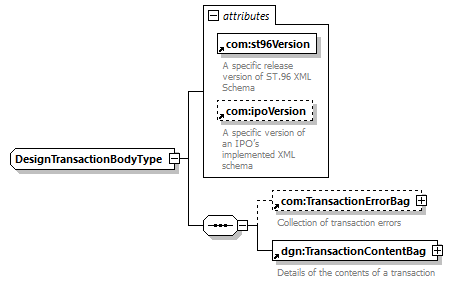

diagram
versionV3_0
namespacehttp://www.wipo.int/standards/XMLSchema/ST96/Design
childrencom:TransactionErrorBag  dgn:TransactionContentBag
used by
element dgn:DesignTransactionBody
attributes
Name  Type Use Default Fixed annotation
com:st96Version xsd:token required   V3_0
com:ipoVersion xsd:token
source<xsd:complexType  name="DesignTransactionBodyType">
<xsd:sequence>
<xsd:element  ref="com:TransactionErrorBag"  minOccurs="0">
</xsd:element> <xsd:element  ref="dgn:TransactionContentBag">
</xsd:element>
</xsd:sequence> <xsd:attribute  ref="com:st96Version"  use="required">
</xsd:attribute> <xsd:attribute  ref="com:ipoVersion">
</xsd:attribute>
</xsd:complexType>
