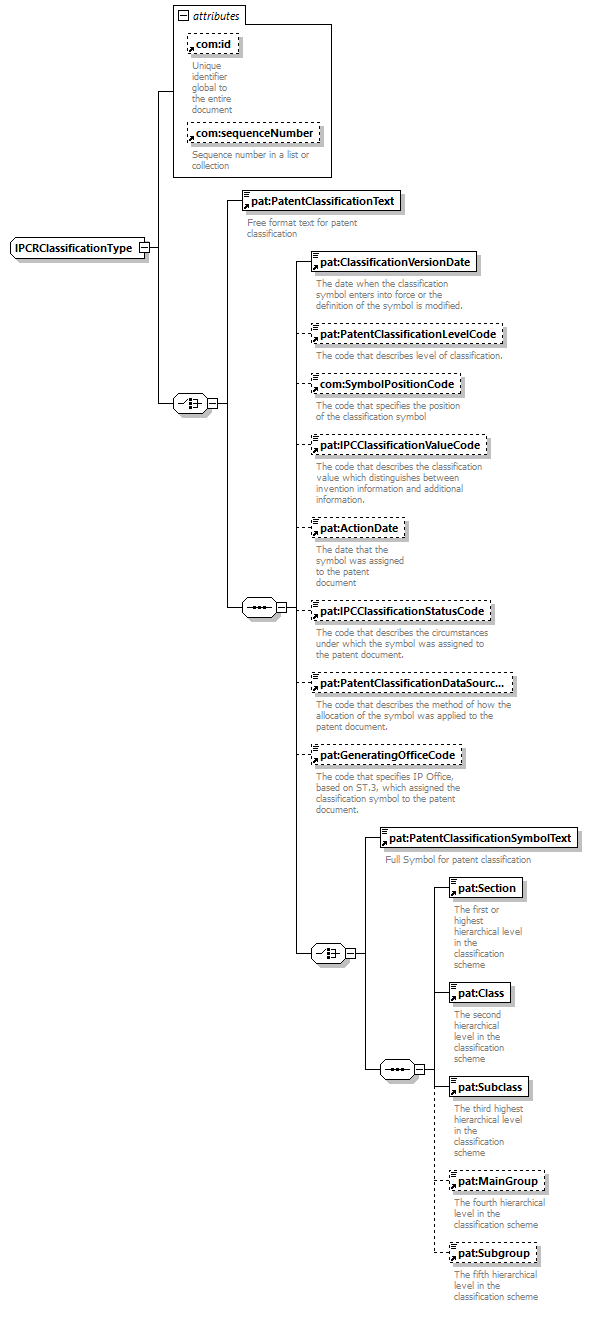

diagram |
![]() |
|||||||||||||||||||||||||||||||||
version | V3_2 | |||||||||||||||||||||||||||||||||
namespace | http://www.wipo.int/standards/XMLSchema/ST96/Patent | |||||||||||||||||||||||||||||||||
children | pat:PatentClassificationText pat:ClassificationVersionDate pat:PatentClassificationLevelCode com:SymbolPositionCode pat:IPCClassificationValueCode pat:ActionDate pat:IPCClassificationStatusCode pat:PatentClassificationDataSourceCode pat:GeneratingOfficeCode pat:PatentClassificationSymbolText pat:Section pat:Class pat:Subclass pat:MainGroup pat:Subgroup | |||||||||||||||||||||||||||||||||
used by |
|
|||||||||||||||||||||||||||||||||
attributes |
|
|||||||||||||||||||||||||||||||||
source |
<xsd:complexType name="IPCRClassificationType">
<xsd:choice>
</xsd:complexType>
<xsd:element ref="pat:PatentClassificationText">
</xsd:element> <xsd:sequence>
</xsd:choice> <xsd:attribute ref="com:id">
</xsd:attribute> <xsd:attribute ref="com:sequenceNumber">
</xsd:attribute>
<xsd:element ref="pat:ClassificationVersionDate">
</xsd:element>
<xsd:element ref="pat:PatentClassificationLevelCode"
minOccurs="0">
</xsd:element>
<xsd:element ref="com:SymbolPositionCode"
minOccurs="0">
</xsd:element>
<xsd:element ref="pat:IPCClassificationValueCode"
minOccurs="0">
</xsd:element>
<xsd:element ref="pat:ActionDate"
minOccurs="0">
</xsd:element>
<xsd:element ref="pat:IPCClassificationStatusCode"
minOccurs="0">
</xsd:element>
<xsd:element ref="pat:PatentClassificationDataSourceCode"
minOccurs="0">
</xsd:element>
<xsd:element ref="pat:GeneratingOfficeCode"
minOccurs="0">
</xsd:element>
<xsd:choice>
</xsd:sequence>
<xsd:element ref="pat:PatentClassificationSymbolText">
</xsd:element>
<xsd:sequence>
</xsd:choice>
<xsd:element ref="pat:Section">
</xsd:element>
<xsd:element ref="pat:Class">
</xsd:element>
<xsd:element ref="pat:Subclass">
</xsd:element>
<xsd:element ref="pat:MainGroup" minOccurs="0">
</xsd:element>
<xsd:element ref="pat:Subgroup" minOccurs="0">
</xsd:element>
</xsd:sequence>
|
