complexType  PaymentType

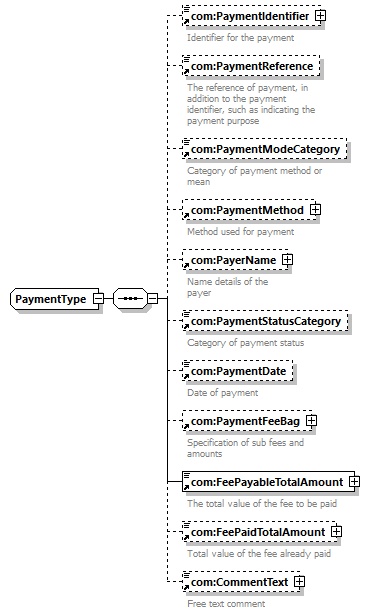

diagram
version V3_2
namespace http://www.wipo.int/standards/XMLSchema/ST96/Common
children   com:PaymentIdentifier com:PaymentReference com:PaymentModeCategory com:PaymentMethod com:PayerName com:PaymentStatusCategory com:PaymentDate com:PaymentFeeBag com:FeePayableTotalAmount com:FeePaidTotalAmount com:CommentText
used by
element     com:Payment
source <xsd:complexType  name="PaymentType">
<xsd:sequence>
<xsd:element  ref="com:PaymentIdentifier"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:PaymentReference"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:PaymentModeCategory"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:PaymentMethod"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:PayerName"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:PaymentStatusCategory"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:PaymentDate"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:PaymentFeeBag"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:FeePayableTotalAmount">
</xsd:element> <xsd:element  ref="com:FeePaidTotalAmount"  minOccurs="0">
</xsd:element> <xsd:element  ref="com:CommentText"  minOccurs="0">
</xsd:element>
</xsd:sequence>
</xsd:complexType>
