complexType  mtable.type

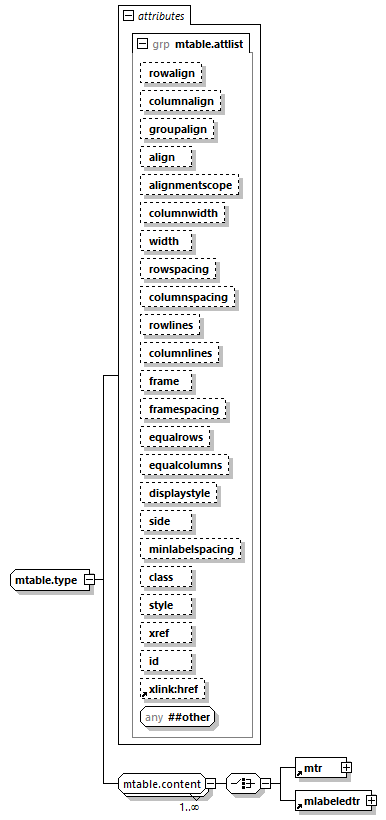

diagram
version
namespace http://www.w3.org/1998/Math/MathML
children   mtr mlabeledtr
used by
element     {http://www.w3.org/1998/Math/MathML}:mtable
attributes
Name   Type   Use   Default   Fixed   annotation
rowalign    xsd:string       baseline
columnalign    xsd:string       center
groupalign    xsd:string
align    xsd:string       axis
alignmentscope    xsd:string       true
columnwidth    xsd:string       auto
width    xsd:string       auto
rowspacing    xsd:string       1.0ex
columnspacing    xsd:string       0.8em
rowlines    xsd:string       none
columnlines    xsd:string       none
frame    xsd:string       none
framespacing    xsd:string       0.4em 0.5ex
equalrows    xsd:boolean       false
equalcolumns    xsd:boolean       false
displaystyle    xsd:boolean       false
side    xsd:string       right
minlabelspacing    length-with-unit       0.8em
class    xsd:NMTOKENS
style    xsd:string
xref    xsd:IDREF
id    xsd:ID
xlink:href    xsd:anyURI
source <xsd:complexType  name="mtable.type">
<xsd:group  ref="mtable.content"  minOccurs="1"  maxOccurs="unbounded">
</xsd:group> <xsd:attributeGroup  ref="mtable.attlist">
</xsd:attributeGroup>
</xsd:complexType>
