index.xsd - PublishFigureType

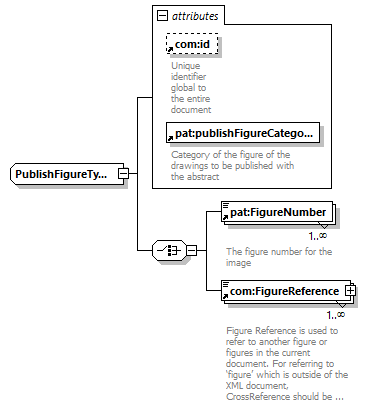

diagram

version

V4_0

namespace

http://www.wipo.int/standards/XMLSchema/ST96/Patent

children

pat:FigureNumber com:FigureReference

used by

element

pat:PublishFigure pat:SearchReportPublishFigure

attributes

Name	Type	Use	Default	Fixed	annotation
com:id	xsd:ID
pat:publishFigureCategory	pat:PublishFigureCategoryType	required

source

<xsd:complexType name="PublishFigureType">

<xsd:choice>

<xsd:element ref="pat:FigureNumber" maxOccurs="unbounded">

</xsd:element> <xsd:element ref="com:FigureReference" maxOccurs="unbounded">

</xsd:element>

</xsd:choice> <xsd:attribute ref="com:id">

</xsd:attribute> <xsd:attribute ref="pat:publishFigureCategory" use="required">

</xsd:attribute>

</xsd:complexType>
