complexType IPCRClassificationType

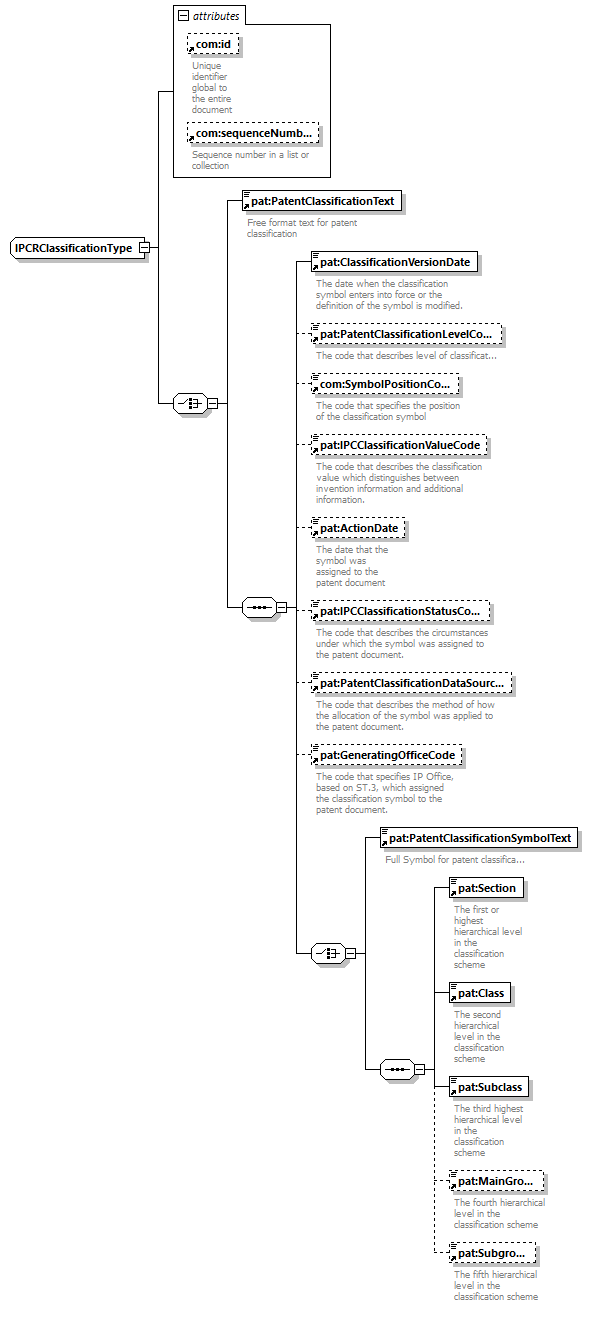

diagram
version V7_0
namespace http://www.wipo.int/standards/XMLSchema/ST96/Patent
children pat:PatentClassificationText pat:ClassificationVersionDate pat:PatentClassificationLevelCode com:SymbolPositionCode pat:IPCClassificationValueCode pat:ActionDate pat:IPCClassificationStatusCode pat:PatentClassificationDataSourceCode pat:GeneratingOfficeCode pat:PatentClassificationSymbolText pat:Section pat:Class pat:Subclass pat:MainGroup pat:Subgroup
used by
element pat:IPCRClassification
attributes
Name Type Use Default Fixed annotation
com:id xsd:ID
com:sequenceNumber xsd:string
source <xsd:complexType name="IPCRClassificationType">
<xsd:choice>
<xsd:element ref="pat:PatentClassificationText">
</xsd:element> <xsd:sequence>
<xsd:element ref="pat:ClassificationVersionDate">
</xsd:element> <xsd:element ref="pat:PatentClassificationLevelCode" minOccurs="0">
</xsd:element> <xsd:element ref="com:SymbolPositionCode" minOccurs="0">
</xsd:element> <xsd:element ref="pat:IPCClassificationValueCode" minOccurs="0">
</xsd:element> <xsd:element ref="pat:ActionDate" minOccurs="0">
</xsd:element> <xsd:element ref="pat:IPCClassificationStatusCode" minOccurs="0">
</xsd:element> <xsd:element ref="pat:PatentClassificationDataSourceCode" minOccurs="0">
</xsd:element> <xsd:element ref="pat:GeneratingOfficeCode" minOccurs="0">
</xsd:element> <xsd:choice>
<xsd:element ref="pat:PatentClassificationSymbolText">
</xsd:element> <xsd:sequence>
<xsd:element ref="pat:Section">
</xsd:element> <xsd:element ref="pat:Class">
</xsd:element> <xsd:element ref="pat:Subclass">
</xsd:element> <xsd:element ref="pat:MainGroup" minOccurs="0">
</xsd:element> <xsd:element ref="pat:Subgroup" minOccurs="0">
</xsd:element>
</xsd:sequence>
</xsd:choice>
</xsd:sequence>
</xsd:choice> <xsd:attribute ref="com:id">
</xsd:attribute> <xsd:attribute ref="com:sequenceNumber">
</xsd:attribute>
</xsd:complexType>
