complexType PatentPublicationType

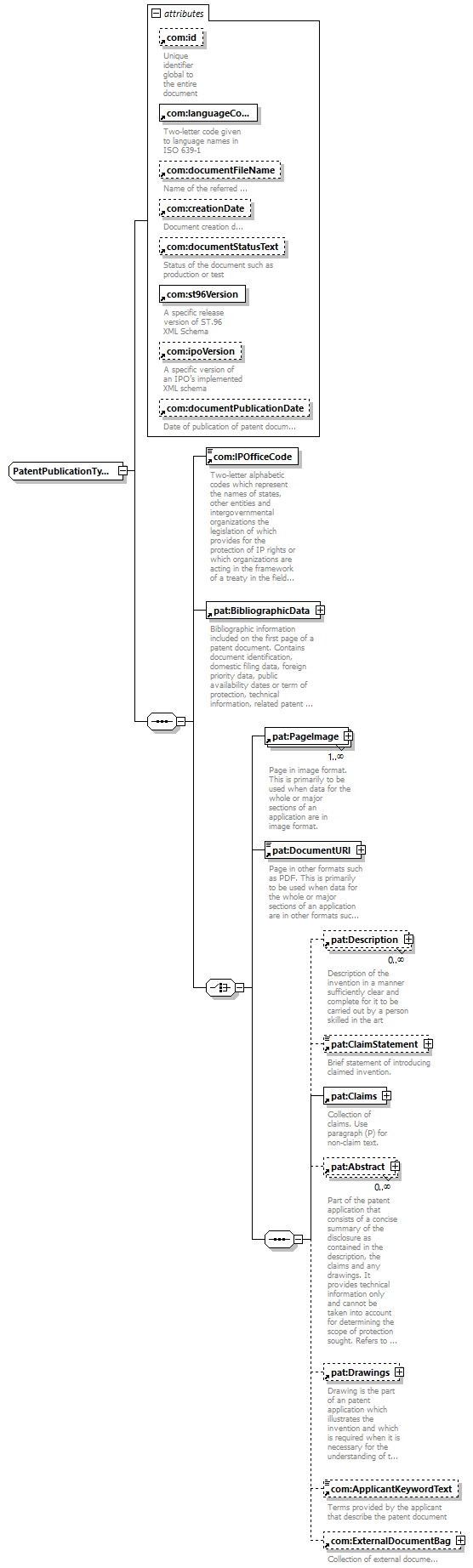

diagram
version V7_0
namespace http://www.wipo.int/standards/XMLSchema/ST96/Patent
children com:IPOfficeCode pat:BibliographicData pat:PageImage pat:DocumentURI pat:Description pat:ClaimStatement pat:Claims pat:Abstract pat:Drawings com:ApplicantKeywordText com:ExternalDocumentBag
used by
element pat:PatentPublication
attributes
Name Type Use Default Fixed annotation
com:id xsd:ID
com:languageCode com:ExtendedISOLanguageCodeType required
com:documentFileName xsd:string
com:creationDate com:DateType
com:documentStatusText xsd:string
com:st96Version xsd:token required V7_0
com:ipoVersion xsd:token
com:documentPublicationDate com:DateType
source <xsd:complexType name="PatentPublicationType">
<xsd:sequence>
<xsd:element ref="com:IPOfficeCode">
</xsd:element> <xsd:element ref="pat:BibliographicData">
</xsd:element> <xsd:choice>
<xsd:element ref="pat:PageImage" maxOccurs="unbounded">
</xsd:element> <xsd:element ref="pat:DocumentURI">
</xsd:element> <xsd:sequence>
<xsd:element ref="pat:Description" minOccurs="0" maxOccurs="unbounded">
</xsd:element> <xsd:element ref="pat:ClaimStatement" minOccurs="0">
</xsd:element> <xsd:element ref="pat:Claims">
</xsd:element> <xsd:element ref="pat:Abstract" minOccurs="0" maxOccurs="unbounded">
</xsd:element> <xsd:element ref="pat:Drawings" minOccurs="0">
</xsd:element> <xsd:element ref="com:ApplicantKeywordText" minOccurs="0">
</xsd:element> <xsd:element ref="com:ExternalDocumentBag" minOccurs="0">
</xsd:element>
</xsd:sequence>
</xsd:choice>
</xsd:sequence> <xsd:attribute ref="com:id">
</xsd:attribute> <xsd:attribute ref="com:languageCode" use="required">
</xsd:attribute> <xsd:attribute ref="com:documentFileName">
</xsd:attribute> <xsd:attribute ref="com:creationDate">
</xsd:attribute> <xsd:attribute ref="com:documentStatusText">
</xsd:attribute> <xsd:attribute ref="com:st96Version" use="required">
</xsd:attribute> <xsd:attribute ref="com:ipoVersion">
</xsd:attribute> <xsd:attribute ref="com:documentPublicationDate">
</xsd:attribute>
</xsd:complexType>
