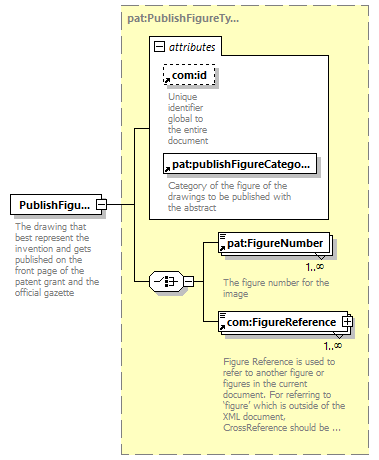

element PublishFigure
diagram
version V7_0
namespace http://www.wipo.int/standards/XMLSchema/ST96/Patent
type pat:PublishFigureType
children pat:FigureNumber com:FigureReference
used by
complexType pat:FigureBagType
attributes
Name Type Use Default Fixed annotation
com:id xsd:ID
pat:publishFigureCategory pat:PublishFigureCategoryType required
source <xsd:element name="PublishFigure" type="pat:PublishFigureType">
<xsd:annotation>
<xsd:documentation>
The drawing that best represent the invention and gets published on the front page of the patent grant and the official gazette
</xsd:documentation>
</xsd:annotation>
</xsd:element>
