complexType SearchReportType

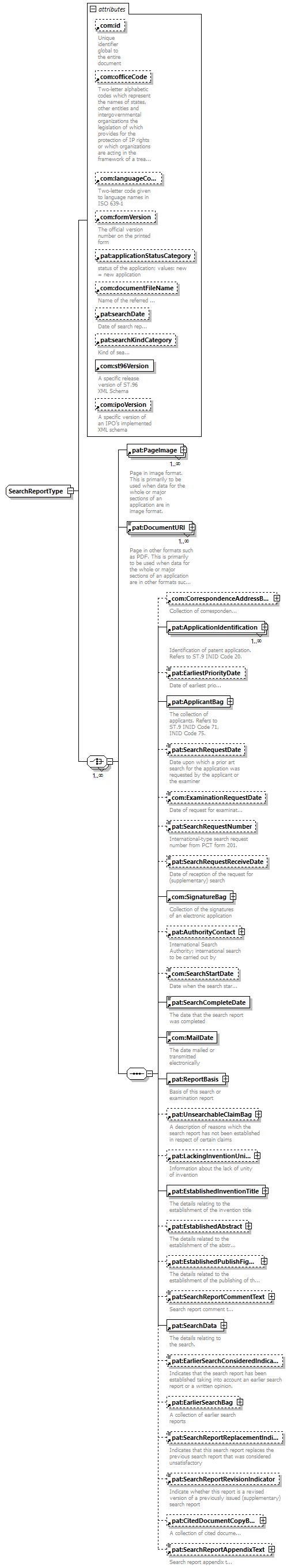

diagram
version V7_0
namespace http://www.wipo.int/standards/XMLSchema/ST96/Patent
children pat:PageImage pat:DocumentURI com:CorrespondenceAddressBag pat:ApplicationIdentification pat:EarliestPriorityDate pat:ApplicantBag pat:SearchRequestDate com:ExaminationRequestDate pat:SearchRequestNumber pat:SearchRequestReceiveDate com:SignatureBag pat:AuthorityContact com:SearchStartDate pat:SearchCompleteDate com:MailDate pat:ReportBasis pat:UnsearchableClaimBag pat:LackingInventionUnity pat:EstablishedInventionTitle pat:EstablishedAbstract pat:EstablishedPublishFigure pat:SearchReportCommentText pat:SearchData pat:EarlierSearchConsideredIndicator pat:EarlierSearchBag pat:SearchReportReplacementIndicator pat:SearchReportRevisionIndicator pat:CitedDocumentCopyBag pat:SearchReportAppendixText
used by
element pat:SearchReport
attributes
Name Type Use Default Fixed annotation
com:id xsd:ID
com:officeCode com:ExtendedWIPOST3CodeType
com:languageCode com:ExtendedISOLanguageCodeType
com:formVersion xsd:string
pat:applicationStatusCategory pat:ApplicationStatusCategoryType
com:documentFileName xsd:string
pat:searchDate com:DateType
pat:searchKindCategory pat:SearchKindCategoryType
com:st96Version xsd:token required V7_0
com:ipoVersion xsd:token
source <xsd:complexType name="SearchReportType">
<xsd:choice maxOccurs="unbounded">
<xsd:element ref="pat:PageImage" maxOccurs="unbounded">
</xsd:element> <xsd:element ref="pat:DocumentURI" maxOccurs="unbounded">
</xsd:element> <xsd:sequence>
<xsd:element ref="com:CorrespondenceAddressBag" minOccurs="0">
</xsd:element> <xsd:element ref="pat:ApplicationIdentification" maxOccurs="unbounded">
</xsd:element> <xsd:element ref="pat:EarliestPriorityDate" minOccurs="0">
</xsd:element> <xsd:element ref="pat:ApplicantBag">
</xsd:element> <xsd:element ref="pat:SearchRequestDate" minOccurs="0">
</xsd:element> <xsd:element ref="com:ExaminationRequestDate" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchRequestNumber" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchRequestReceiveDate" minOccurs="0">
</xsd:element> <xsd:element ref="com:SignatureBag">
</xsd:element> <xsd:element ref="pat:AuthorityContact" minOccurs="0">
</xsd:element> <xsd:element ref="com:SearchStartDate" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchCompleteDate">
</xsd:element> <xsd:element ref="com:MailDate">
</xsd:element> <xsd:element ref="pat:ReportBasis">
</xsd:element> <xsd:element ref="pat:UnsearchableClaimBag" minOccurs="0">
</xsd:element> <xsd:element ref="pat:LackingInventionUnity" minOccurs="0">
</xsd:element> <xsd:element ref="pat:EstablishedInventionTitle">
</xsd:element> <xsd:element ref="pat:EstablishedAbstract" minOccurs="0">
</xsd:element> <xsd:element ref="pat:EstablishedPublishFigure" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchReportCommentText" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchData">
</xsd:element> <xsd:element ref="pat:EarlierSearchConsideredIndicator" minOccurs="0">
</xsd:element> <xsd:element ref="pat:EarlierSearchBag" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchReportReplacementIndicator" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchReportRevisionIndicator" minOccurs="0">
</xsd:element> <xsd:element ref="pat:CitedDocumentCopyBag" minOccurs="0">
</xsd:element> <xsd:element ref="pat:SearchReportAppendixText" minOccurs="0">
</xsd:element>
</xsd:sequence>
</xsd:choice> <xsd:attribute ref="com:id">
</xsd:attribute> <xsd:attribute ref="com:officeCode">
</xsd:attribute> <xsd:attribute ref="com:languageCode">
</xsd:attribute> <xsd:attribute ref="com:formVersion">
</xsd:attribute> <xsd:attribute ref="pat:applicationStatusCategory">
</xsd:attribute> <xsd:attribute ref="com:documentFileName">
</xsd:attribute> <xsd:attribute ref="pat:searchDate">
</xsd:attribute> <xsd:attribute ref="pat:searchKindCategory">
</xsd:attribute> <xsd:attribute ref="com:st96Version" use="required">
</xsd:attribute> <xsd:attribute ref="com:ipoVersion">
</xsd:attribute>
</xsd:complexType>
