complexType TransactionContentBagType

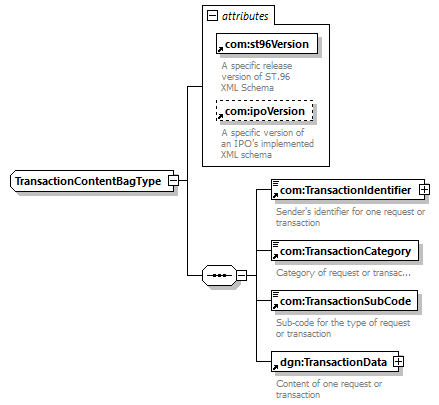

diagram
version V7_0
namespace http://www.wipo.int/standards/XMLSchema/ST96/Design
children com:TransactionIdentifier com:TransactionCategory com:TransactionSubCode dgn:TransactionData
used by
element dgn:TransactionContentBag
attributes
Name Type Use Default Fixed annotation
com:st96Version xsd:token required V7_0
com:ipoVersion xsd:token
source <xsd:complexType name="TransactionContentBagType">
<xsd:sequence>
<xsd:element ref="com:TransactionIdentifier">
</xsd:element> <xsd:element ref="com:TransactionCategory">
</xsd:element> <xsd:element ref="com:TransactionSubCode">
</xsd:element> <xsd:element ref="dgn:TransactionData">
</xsd:element>
</xsd:sequence> <xsd:attribute ref="com:st96Version" use="required">
</xsd:attribute> <xsd:attribute ref="com:ipoVersion">
</xsd:attribute>
</xsd:complexType>
